HTS834

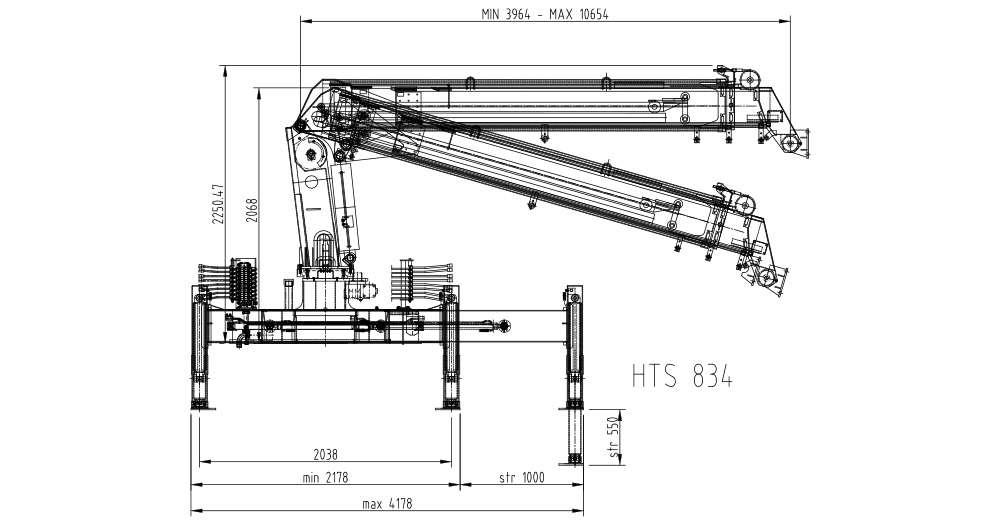

Technical Data for HTS834 Stick Boom Crane

That allows movement from side to side.

* Specifications may change depending on product performance.

**Product performance table, divided into units, and guided to HTS834.**
Specifications	Units	HTS834
Maximum Lifting Capacity	ton.m	8.0
Load Capacity	kgf/m	3,500/2.5
		1,290/5.7
		1,000/7.0
		550/10.3
Maximum Working Radius	m	10.3
Maximum Working Height	m	11.8
Derrick Cylinder	type	Single
Shape of Boom	type	Hexagonal type construction 4 sections
Boom Extending Speed	m/sec	6.6/25
Boom Raising Speed	Deg./sec	(-)16~80/15
Swing Angle	Deg.	360° 360deg. Continuous
Swing reduction-gear Type	type	worm gear deceleration + swing bearing
Wire Rope	φ*m	8*60(Hercules)
Winch reduction-gear Type	type	Spur gear speed reduction with mechanical brake
Single line Pull	ton	0.75/ 1 layer
Swivel reducer Types	type	Hydraulic motor drive, worm gear deceleration type, hydraulic brake included
Outrigger Type	type	Vertical and Horizontal hyd. Operated systems
Outrigger Span	m	Front:6.22, Rear:4.4
Recommended Truck	ton	Over 3.5 ton
Safety Device	-	Overwinding device, Overloading device, Hydraulic safety valve, Overcenter valve, Check valve for outrigger, Load indicator Swing reduction hydraulic brake, Safety latch hook, Emergency stopping device.
