HTS2076

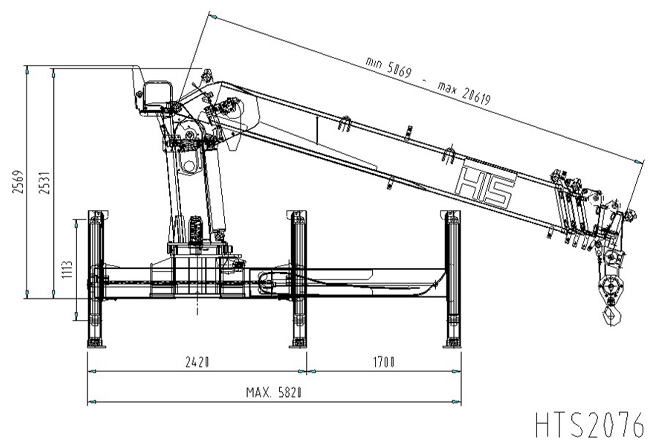

Technical Data for HTS2076 Stick Boom Crane

That allows movement from side to side.

* Specifications may change depending on product performance.

**Product performance table, divided into units, and guided to HTS2076.**
Specifications	Units	HTS2076
Maximum Lifting Capacity	ton.m	18.5
Load Capacity	kgf/m	8,000/2.3
		3,700/6.0
		1,300/12.0
		500/20.3
Maximum Working Radius	m	20.3
Maximum Working Height	m	23.1
Derrick Cylinder	type	Double
Rated Flow	ℓpm	63
Rated Pressure	kgf/cm²	210
Shape of Boom	type	Hexagonal type construction 6 sections
Boom Extending Speed	m/sec	15.5/40
Boom Raising Speed	Deg./sec	(-)17~80/16
Swing Speed	rpm	2.0
Swing reduction-gear Type	type	Hydraulic motor driven, type of worm gear speed reduction with hydraulic brake
Wire Rope	φ*m	10*100(Hercules)
Hook Speed	m/min	60(1 Part line)
Winch reduction-gear Type	type	Spur gear speed reduction with mechanical brake
Single line Pull	ton	1.75/ 1 layer
Outrigger Type	type	Vertical and Horizontal hyd. Operated systems
Outrigger Span	m	Front:5.82, Rear:4.4
Recommended Truck	ton	Over 7 ton
Safety Device	-	Overwinding device, Overloading device, Hydraulic safety valve, Overcenter valve, Check valve for outrigger, Load indicator Swing reduction hydraulic brake, Safety latch hook, Emergency stopping device.
